Detailed Description

Discrete Conditional Density Derives from DecisionTreeFactor.

represent a discrete conditional distribution over discrete variables.

Hybrid conditional densities, such as

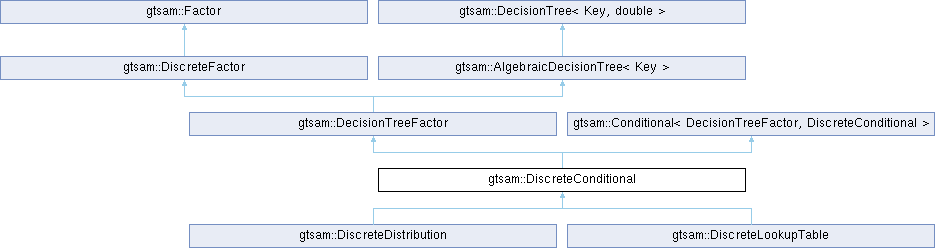

Inheritance diagram for gtsam::DiscreteConditional:

Public Member Functions
Standard Constructors
	DiscreteConditional ()
	Default constructor needed for serialization.
	DiscreteConditional (size_t nFrontals, const DecisionTreeFactor &f)
	Construct from factor, taking the first nFrontals keys as frontals.
	DiscreteConditional (size_t nFrontals, const DiscreteKeys &keys, const ADT &potentials)
	Construct from DiscreteKeys and AlgebraicDecisionTree, taking the first nFrontals keys as frontals, in the order given.
	DiscreteConditional (const Signature &signature)
	Construct from signature.
	DiscreteConditional (const DiscreteKey &key, const DiscreteKeys &parents, const Signature::Table &table)
	Construct from key, parents, and a Signature::Table specifying the conditional probability table (CPT) in 00 01 10 11 order.
	DiscreteConditional (const DiscreteKey &key, const DiscreteKeys &parents, const std::string &spec)
	Construct from key, parents, and a string specifying the conditional probability table (CPT) in 00 01 10 11 order.
	DiscreteConditional (const DiscreteKey &key, const std::string &spec)
	No-parent specialization; can also use DiscreteDistribution.
	DiscreteConditional (const DecisionTreeFactor &joint, const DecisionTreeFactor &marginal)
	construct P(X\|Y) = f(X,Y)/f(Y) from f(X,Y) and f(Y) Assumes but does not check that f(Y)=sum_X f(X,Y).
	DiscreteConditional (const DecisionTreeFactor &joint, const DecisionTreeFactor &marginal, const Ordering &orderedKeys)
	construct P(X\|Y) = f(X,Y)/f(Y) from f(X,Y) and f(Y) Assumes but does not check that f(Y)=sum_X f(X,Y).
DiscreteConditional	operator* (const DiscreteConditional &other) const
	Combine two conditionals, yielding a new conditional with the union of the frontal keys, ordered by gtsam::Key.
DiscreteConditional	marginal (Key key) const
	Calculate marginal on given key, no parent case.
Testable
void	print (const std::string &s="Discrete Conditional: ", const KeyFormatter &formatter=DefaultKeyFormatter) const override
	GTSAM-style print.
bool	equals (const DiscreteFactor &other, double tol=1e-9) const override
	GTSAM-style equals.
Standard Interface
double	logProbability (const DiscreteValues &x) const
	Log-probability is just -error(x).
void	printSignature (const std::string &s="Discrete Conditional: ", const KeyFormatter &formatter=DefaultKeyFormatter) const
	print index signature only
double	evaluate (const DiscreteValues &values) const
	Evaluate, just look up in AlgebraicDecisonTree.
shared_ptr	choose (const DiscreteValues &given) const
	< DiscreteValues version
DecisionTreeFactor::shared_ptr	likelihood (const DiscreteValues &frontalValues) const
	Convert to a likelihood factor by providing value before bar.
DecisionTreeFactor::shared_ptr	likelihood (size_t frontal) const
	Single variable version of likelihood.
size_t	sample (const DiscreteValues &parentsValues) const
	sample
size_t	sample (size_t parent_value) const
	Single parent version.
size_t	sample () const
	Zero parent version.
size_t	argmax () const
	Return assignment that maximizes distribution.
double	error (const DiscreteValues &values) const
	Calculate error for DiscreteValues x, is -log(probability).
double	error (const HybridValues &values) const override
	Calculate error for HybridValues x, is -log(probability) Simply dispatches to DiscreteValues version.
double	operator() (const DiscreteValues &values) const override
	< DiscreteValues version
Advanced Interface
void	sampleInPlace (DiscreteValues *parentsValues) const
	sample in place, stores result in partial solution
std::vector< DiscreteValues >	frontalAssignments () const
	Return all assignments for frontal variables.
std::vector< DiscreteValues >	allAssignments () const
	Return all assignments for frontal and parent variables.
Wrapper support
std::string	markdown (const KeyFormatter &keyFormatter=DefaultKeyFormatter, const Names &names={}) const override
	Render as markdown table.
std::string	html (const KeyFormatter &keyFormatter=DefaultKeyFormatter, const Names &names={}) const override
	Render as html table.
HybridValues methods.
double	evaluate (const HybridValues &x) const override
	Calculate probability for HybridValues x.
double	logProbability (const HybridValues &x) const override
	< HybridValues version
double	logNormalizationConstant () const override
	logNormalizationConstant K is just zero, such that logProbability(x) = log(evaluate(x)) = - error(x) and hence error(x) = - log(evaluate(x)) > 0 for all x.
double	operator() (const HybridValues &x) const
	Evaluate probability density, sugar.
Public Member Functions inherited from gtsam::DecisionTreeFactor
	DecisionTreeFactor ()
	Default constructor for I/O.
	DecisionTreeFactor (const DiscreteKeys &keys, const ADT &potentials)
	Constructor from DiscreteKeys and AlgebraicDecisionTree.
	DecisionTreeFactor (const DiscreteKeys &keys, const std::vector< double > &table)
	Constructor from doubles.
	DecisionTreeFactor (const DiscreteKeys &keys, const std::string &table)
	Constructor from string.
template<class SOURCE>
	DecisionTreeFactor (const DiscreteKey &key, SOURCE table)
	Single-key specialization.
	DecisionTreeFactor (const DiscreteKey &key, const std::vector< double > &row)
	Single-key specialization, with vector of doubles.
	DecisionTreeFactor (const DiscreteConditional &c)
	Construct from a DiscreteConditional type.
DecisionTreeFactor	apply (const DecisionTreeFactor &f, ADT::Binary op) const
	Apply binary operator (*this) "op" f.
shared_ptr	combine (size_t nrFrontals, ADT::Binary op) const
	Combine frontal variables using binary operator "op".
shared_ptr	combine (const Ordering &keys, ADT::Binary op) const
	Combine frontal variables in an Ordering using binary operator "op".
std::vector< std::pair< DiscreteValues, double > >	enumerate () const
	Enumerate all values into a map from values to double.
DiscreteKeys	discreteKeys () const
	Return all the discrete keys associated with this factor.
DecisionTreeFactor	prune (size_t maxNrAssignments) const
	Prune the decision tree of discrete variables.
void	dot (std::ostream &os, const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
	output to graphviz format, stream version
void	dot (const std::string &name, const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
	output to graphviz format, open a file
std::string	dot (const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
	output to graphviz format string
double	evaluate (const DiscreteValues &values) const
	Calculate probability for given values x, is just look up in AlgebraicDecisionTree.
double	error (const DiscreteValues &values) const
	Calculate error for DiscreteValues x, is -log(probability).
DecisionTreeFactor	operator* (const DecisionTreeFactor &f) const override
	multiply two factors
size_t	cardinality (Key j) const
DecisionTreeFactor	operator/ (const DecisionTreeFactor &f) const
	divide by factor f (safely)
DecisionTreeFactor	toDecisionTreeFactor () const override
	Convert into a decisiontree.
shared_ptr	sum (size_t nrFrontals) const
	Create new factor by summing all values with the same separator values.
shared_ptr	sum (const Ordering &keys) const
	Create new factor by summing all values with the same separator values.
shared_ptr	max (size_t nrFrontals) const
	Create new factor by maximizing over all values with the same separator.
shared_ptr	max (const Ordering &keys) const
	Create new factor by maximizing over all values with the same separator.
Public Member Functions inherited from gtsam::DiscreteFactor
	DiscreteFactor ()
	Default constructor creates empty factor.
template<typename CONTAINER>
	DiscreteFactor (const CONTAINER &keys)
	Construct from container of keys.
virtual	~DiscreteFactor ()
	Virtual destructor.
void	print (const std::string &s="DiscreteFactor\n", const KeyFormatter &formatter=DefaultKeyFormatter) const override
	print
double	error (const DiscreteValues &values) const
	Error is just -log(value).
double	error (const HybridValues &c) const override
	All factor types need to implement an error function.
Public Member Functions inherited from gtsam::Factor
virtual	~Factor ()=default
	Default destructor.
bool	empty () const
	Whether the factor is empty (involves zero variables).
Key	front () const
	First key.
Key	back () const
	Last key.
const_iterator	find (Key key) const
	find
const KeyVector &	keys () const
	Access the factor's involved variable keys.
const_iterator	begin () const
	Iterator at beginning of involved variable keys.
const_iterator	end () const
	Iterator at end of involved variable keys.
size_t	size () const
virtual void	printKeys (const std::string &s="Factor", const KeyFormatter &formatter=DefaultKeyFormatter) const
	print only keys
bool	equals (const This &other, double tol=1e-9) const
	check equality
KeyVector &	keys ()
iterator	begin ()
	Iterator at beginning of involved variable keys.
iterator	end ()
	Iterator at end of involved variable keys.
Public Member Functions inherited from gtsam::AlgebraicDecisionTree< Key >
	AlgebraicDecisionTree (double leaf=1.0)
	AlgebraicDecisionTree (const Base &add)
	AlgebraicDecisionTree (const Key &label, double y1, double y2)
	Create a new leaf function splitting on a variable.
	AlgebraicDecisionTree (const typename Base::LabelC &labelC, double y1, double y2)
	Create a new leaf function splitting on a variable.
	AlgebraicDecisionTree (const std::vector< typename Base::LabelC > &labelCs, const std::vector< double > &ys)
	Create from keys with cardinalities and a vector table.
	AlgebraicDecisionTree (const std::vector< typename Base::LabelC > &labelCs, const std::string &table)
	Create from keys and string table.
	AlgebraicDecisionTree (Iterator begin, Iterator end, const Key &label)
	Create a range of decision trees, splitting on a single variable.
	AlgebraicDecisionTree (const AlgebraicDecisionTree< M > &other, const std::map< M, Key > &map)
	Convert labels from type M to type L.
AlgebraicDecisionTree	operator+ (const AlgebraicDecisionTree &g) const
	sum
AlgebraicDecisionTree	operator* (const AlgebraicDecisionTree &g) const
	product
AlgebraicDecisionTree	operator/ (const AlgebraicDecisionTree &g) const
	division
AlgebraicDecisionTree	sum (const Key &label, size_t cardinality) const
	sum out variable
AlgebraicDecisionTree	sum (const typename Base::LabelC &labelC) const
	sum out variable
void	print (const std::string &s="", const typename Base::LabelFormatter &labelFormatter=&DefaultFormatter) const
	print method customized to value type double.
bool	equals (const AlgebraicDecisionTree &other, double tol=1e-9) const
	Equality method customized to value type double.
Public Member Functions inherited from gtsam::DecisionTree< L, Y >
	DecisionTree ()
	Default constructor (for serialization).
	DecisionTree (const Y &y)
	Create a constant.
	DecisionTree (const L &label, const Y &y1, const Y &y2)
	Create tree with 2 assignments y1, y2, splitting on variable label.
	DecisionTree (const LabelC &label, const Y &y1, const Y &y2)
	Allow Label+Cardinality for convenience.
	DecisionTree (const std::vector< LabelC > &labelCs, const std::vector< Y > &ys)
	Create from keys and a corresponding vector of values.
	DecisionTree (const std::vector< LabelC > &labelCs, const std::string &table)
	Create from keys and string table.
template<typename Iterator>
	DecisionTree (Iterator begin, Iterator end, const L &label)
	Create DecisionTree from others.
	DecisionTree (const L &label, const DecisionTree &f0, const DecisionTree &f1)
	Create DecisionTree from two others.
template<typename X, typename Func>
	DecisionTree (const DecisionTree< L, X > &other, Func Y_of_X)
	Convert from a different value type.
template<typename M, typename X, typename Func>
	DecisionTree (const DecisionTree< M, X > &other, const std::map< M, L > &map, Func Y_of_X)
	Convert from a different value type X to value type Y, also transate labels via map from type M to L.
void	print (const std::string &s, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter) const
	GTSAM-style print.
bool	equals (const DecisionTree &other, const CompareFunc &compare=&DefaultCompare) const
virtual	~DecisionTree ()=default
	Make virtual.
bool	empty () const
	Check if tree is empty.
bool	operator== (const DecisionTree &q) const
	equality
const Y &	operator() (const Assignment< L > &x) const
	evaluate
template<typename Func>
void	visit (Func f) const
	Visit all leaves in depth-first fashion.
template<typename Func>
void	visitLeaf (Func f) const
	Visit all leaves in depth-first fashion.
template<typename Func>
void	visitWith (Func f) const
	Visit all leaves in depth-first fashion.
size_t	nrLeaves () const
	Return the number of leaves in the tree.
template<typename Func, typename X>
X	fold (Func f, X x0) const
	Fold a binary function over the tree, returning accumulator.
std::set< L >	labels () const
	Retrieve all unique labels as a set.
DecisionTree	apply (const Unary &op) const
	apply Unary operation "op" to f
DecisionTree	apply (const UnaryAssignment &op) const
	Apply Unary operation "op" to f while also providing the corresponding assignment.
DecisionTree	apply (const DecisionTree &g, const Binary &op) const
	apply binary operation "op" to f and g
DecisionTree	choose (const L &label, size_t index) const
	create a new function where value(label)==index It's like "restrict" in Darwiche09book pg329, 330?
DecisionTree	combine (const L &label, size_t cardinality, const Binary &op) const
	combine subtrees on key with binary operation "op"
DecisionTree	combine (const LabelC &labelC, const Binary &op) const
	combine with LabelC for convenience
void	dot (std::ostream &os, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
	output to graphviz format, stream version
void	dot (const std::string &name, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
	output to graphviz format, open a file
std::string	dot (const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
	output to graphviz format string
	DecisionTree (const NodePtr &root)
template<typename Iterator>
NodePtr	compose (Iterator begin, Iterator end, const L &label) const
Public Member Functions inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
void	print (const std::string &s="Conditional", const KeyFormatter &formatter=DefaultKeyFormatter) const
	print with optional formatter
bool	equals (const This &c, double tol=1e-9) const
	check equality
size_t	nrFrontals () const
	return the number of frontals
size_t	nrParents () const
	return the number of parents
Key	firstFrontalKey () const
	Convenience function to get the first frontal key.
Frontals	frontals () const
	return a view of the frontal keys
Parents	parents () const
	return a view of the parent keys
double	operator() (const HybridValues &x) const
	Evaluate probability density, sugar.
double	normalizationConstant () const
	Non-virtual, exponentiate logNormalizationConstant.
DecisionTreeFactor::const_iterator	beginFrontals () const
	Iterator pointing to first frontal key.
DecisionTreeFactor::const_iterator	endFrontals () const
	Iterator pointing past the last frontal key.
DecisionTreeFactor::const_iterator	beginParents () const
	Iterator pointing to the first parent key.
DecisionTreeFactor::const_iterator	endParents () const
	Iterator pointing past the last parent key.

Public Types
typedef DiscreteConditional	This
	Typedef to this class.
typedef boost::shared_ptr< This >	shared_ptr
	shared_ptr to this class
typedef DecisionTreeFactor	BaseFactor
	Typedef to our factor base class.
typedef Conditional< BaseFactor, This >	BaseConditional
	Typedef to our conditional base class.
using	Values = DiscreteValues
	backwards compatibility
Public Types inherited from gtsam::DecisionTreeFactor
typedef DecisionTreeFactor	This
typedef DiscreteFactor	Base
	Typedef to base class.
typedef boost::shared_ptr< DecisionTreeFactor >	shared_ptr
typedef AlgebraicDecisionTree< Key >	ADT
Public Types inherited from gtsam::DiscreteFactor
typedef DiscreteFactor	This
	This class.
typedef boost::shared_ptr< DiscreteFactor >	shared_ptr
	shared_ptr to this class
typedef Factor	Base
	Our base class.
using	Values = DiscreteValues
	backwards compatibility
using	Names = DiscreteValues::Names
	Translation table from values to strings.
Public Types inherited from gtsam::Factor
typedef KeyVector::iterator	iterator
	Iterator over keys.
typedef KeyVector::const_iterator	const_iterator
	Const iterator over keys.
Public Types inherited from gtsam::AlgebraicDecisionTree< Key >
using	Base
Public Types inherited from gtsam::DecisionTree< L, Y >
using	LabelFormatter = std::function<std::string(L)>
using	ValueFormatter = std::function<std::string(Y)>
using	CompareFunc = std::function<bool(const Y&, const Y&)>
using	Unary = std::function<Y(const Y&)>
	Handy typedefs for unary and binary function types.
using	UnaryAssignment = std::function<Y(const Assignment<L>&, const Y&)>
using	Binary = std::function<Y(const Y&, const Y&)>
using	LabelC = std::pair<L, size_t>
	A label annotated with cardinality.
using	NodePtr = typename Node::Ptr
	---------------------— Node base class ------------------------—
Public Types inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
typedef boost::iterator_range< typename DecisionTreeFactor::const_iterator >	Frontals
	View of the frontal keys (call frontals()).
typedef boost::iterator_range< typename DecisionTreeFactor::const_iterator >	Parents
	View of the separator keys (call parents()).

Protected Member Functions
DiscreteConditional::ADT	choose (const DiscreteValues &given, bool forceComplete) const
	Internal version of choose.
	Factor ()
	Default constructor for I/O.
template<typename CONTAINER>
	Factor (const CONTAINER &keys)
	Construct factor from container of keys.
template<typename ITERATOR>
	Factor (ITERATOR first, ITERATOR last)
	Construct factor from iterator keys.
Protected Member Functions inherited from gtsam::DecisionTree< L, Y >
template<typename It, typename ValueIt>
NodePtr	create (It begin, It end, ValueIt beginY, ValueIt endY) const
	Internal recursive function to create from keys, cardinalities, and Y values.
template<typename M, typename X>
NodePtr	convertFrom (const typename DecisionTree< M, X >::NodePtr &f, std::function< L(const M &)> L_of_M, std::function< Y(const X &)> Y_of_X) const
	Convert from a DecisionTree<M, X> to DecisionTree<L, Y>.
Protected Member Functions inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
	Conditional ()
	Empty Constructor to make serialization possible.

Friends
class	boost::serialization::access
	Serialization function.

Additional Inherited Members
static double	safe_div (const double &a, const double &b)
static bool	CheckInvariants (const DiscreteConditional &conditional, const VALUES &x)
	Check invariants of this conditional, given the values x.
Public Attributes inherited from gtsam::DecisionTree< L, Y >
NodePtr	root_
	A DecisionTree just contains the root. TODO(dellaert): make protected.
template<typename CONTAINER>
static Factor	FromKeys (const CONTAINER &keys)
	Construct factor from container of keys.
template<typename ITERATOR>
static Factor	FromIterators (ITERATOR first, ITERATOR last)
	Construct factor from iterator keys.
Static Protected Member Functions inherited from gtsam::DecisionTree< L, Y >
static bool	DefaultCompare (const Y &a, const Y &b)
	Default method for comparison of two objects of type Y.
Protected Attributes inherited from gtsam::DecisionTreeFactor
std::map< Key, size_t >	cardinalities_
Protected Attributes inherited from gtsam::Factor
KeyVector	keys_
	The keys involved in this factor.
Protected Attributes inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
size_t	nrFrontals_
	The first nrFrontal variables are frontal and the rest are parents.

Constructor & Destructor Documentation

◆ DiscreteConditional() [1/3]

gtsam::DiscreteConditional::DiscreteConditional	(	const DiscreteKey &	key,
		const DiscreteKeys &	parents,
		const Signature::Table &	table )

inline

Construct from key, parents, and a Signature::Table specifying the conditional probability table (CPT) in 00 01 10 11 order.

For three-valued, it would be 00 01 02 10 11 12 20 21 22, etc....

Example: DiscreteConditional P(D, {B,E}, table);

◆ DiscreteConditional() [2/3]

gtsam::DiscreteConditional::DiscreteConditional	(	const DiscreteKey &	key,
		const DiscreteKeys &	parents,
		const std::string &	spec )

inline

Construct from key, parents, and a string specifying the conditional probability table (CPT) in 00 01 10 11 order.

For three-valued, it would be 00 01 02 10 11 12 20 21 22, etc....

The string is parsed into a Signature::Table.

Example: DiscreteConditional P(D, {B,E}, "9/1 2/8 3/7 1/9");

◆ DiscreteConditional() [3/3]

gtsam::DiscreteConditional::DiscreteConditional	(	const DecisionTreeFactor &	joint,
		const DecisionTreeFactor &	marginal,
		const Ordering &	orderedKeys )

construct P(X|Y) = f(X,Y)/f(Y) from f(X,Y) and f(Y) Assumes but does not check that f(Y)=sum_X f(X,Y).

Makes sure the keys are ordered as given. Does not check orderedKeys.

Member Function Documentation

◆ argmax()

size_t gtsam::DiscreteConditional::argmax ( ) const

Return assignment that maximizes distribution.

Returns: Optimal assignment (1 frontal variable).

◆ choose()

DiscreteConditional::shared_ptr gtsam::DiscreteConditional::choose ( const DiscreteValues & given ) const

< DiscreteValues version

restrict to given parent values.

Note: does not need be complete set. Examples:

Returns: a shared_ptr to a new DiscreteConditional

◆ equals()

bool gtsam::DiscreteConditional::equals	(	const DiscreteFactor &	other,
		double	tol = 1e-9 ) const

overridevirtual

GTSAM-style equals.

Reimplemented from gtsam::DecisionTreeFactor.

◆ error()

double gtsam::DecisionTreeFactor::error ( const HybridValues & values ) const

overridevirtual

Calculate error for HybridValues x, is -log(probability) Simply dispatches to DiscreteValues version.

Reimplemented from gtsam::DecisionTreeFactor.

◆ evaluate()

double gtsam::DiscreteConditional::evaluate ( const HybridValues & x ) const

overridevirtual

Calculate probability for HybridValues x.

Dispatches to DiscreteValues version.

Reimplemented from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >.

◆ html()

string gtsam::DiscreteConditional::html	(	const KeyFormatter &	keyFormatter = DefaultKeyFormatter,
		const Names &	names = {} ) const

overridevirtual

Render as html table.

Reimplemented from gtsam::DecisionTreeFactor.

◆ logNormalizationConstant()

double gtsam::DiscreteConditional::logNormalizationConstant ( ) const

inlineoverridevirtual

logNormalizationConstant K is just zero, such that logProbability(x) = log(evaluate(x)) = - error(x) and hence error(x) = - log(evaluate(x)) > 0 for all x.

Reimplemented from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >.

◆ logProbability()

double gtsam::DiscreteConditional::logProbability ( const HybridValues & x ) const

inlineoverridevirtual

< HybridValues version

Calculate log-probability log(evaluate(x)) for HybridValues x. This is actually just -error(x).

Reimplemented from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >.

◆ markdown()

std::string gtsam::DiscreteConditional::markdown	(	const KeyFormatter &	keyFormatter = DefaultKeyFormatter,
		const Names &	names = {} ) const

overridevirtual

Render as markdown table.

Reimplemented from gtsam::DecisionTreeFactor.

◆ operator()()

double gtsam::DecisionTreeFactor::operator() ( const DiscreteValues & values ) const

inlineoverridevirtual

< DiscreteValues version

Reimplemented from gtsam::DecisionTreeFactor.

◆ operator*()

DiscreteConditional gtsam::DiscreteConditional::operator* ( const DiscreteConditional & other ) const

Combine two conditionals, yielding a new conditional with the union of the frontal keys, ordered by gtsam::Key.

The two conditionals must make a valid Bayes net fragment, i.e., the frontal variables cannot overlap, and must be acyclic: Example of correct use: P(A,B) = P(A|B) * P(B) P(A,B|C) = P(A|B) * P(B|C) P(A,B,C) = P(A,B|C) * P(C) Example of incorrect use: P(A|B) * P(A|C) = ? P(A|B) * P(B|A) = ? We check for overlapping frontals, but do not check for cyclic.

◆ print()

void gtsam::DiscreteConditional::print	(	const std::string &	s = "Discrete Conditional: ",
		const KeyFormatter &	formatter = DefaultKeyFormatter ) const

overridevirtual

GTSAM-style print.

Reimplemented from gtsam::DecisionTreeFactor.

Reimplemented in gtsam::DiscreteDistribution, and gtsam::DiscreteLookupTable.

◆ sample()

size_t gtsam::DiscreteConditional::sample ( const DiscreteValues & parentsValues ) const

sample

Parameters

parentsValues Known values of the parents

Returns: sample from conditional

The documentation for this class was generated from the following files:

/tmp/gtsam-4.2-docs.H5EUbA/src/gtsam/discrete/DiscreteConditional.h
/tmp/gtsam-4.2-docs.H5EUbA/src/gtsam/discrete/DiscreteConditional.cpp

Detailed Description

Public Member Functions

Public Types

Protected Member Functions

Friends

Additional Inherited Members

Constructor & Destructor Documentation

◆ DiscreteConditional() [1/3]

◆ DiscreteConditional() [2/3]

◆ DiscreteConditional() [3/3]

Member Function Documentation

◆ argmax()

◆ choose()

◆ equals()

◆ error()

◆ evaluate()

◆ html()

◆ logNormalizationConstant()

◆ logProbability()

◆ markdown()

◆ operator()()

◆ operator*()

◆ print()

◆ sample()
