gtsam::DiscreteLookupTable Class Reference
Discrete

Detailed Description

DiscreteLookupTable table for max-product.

Inherits from discrete conditional for convenience, but is not normalized. Is used in the max-product algorithm.

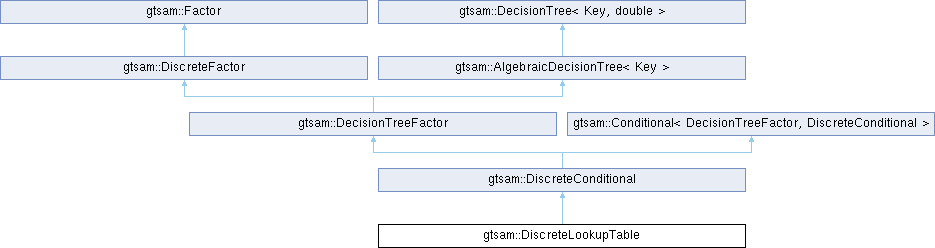

Inheritance diagram for gtsam::DiscreteLookupTable:

Public Member Functions

 DiscreteLookupTable (size_t nFrontals, const DiscreteKeys &keys, const ADT &potentials)
 Construct a new Discrete Lookup Table object.
void print (const std::string &s="Discrete Lookup Table: ", const KeyFormatter &formatter=DefaultKeyFormatter) const override
 GTSAM-style print.
size_t argmax (const DiscreteValues &parentsValues) const
 return assignment for single frontal variable that maximizes value.
void argmaxInPlace (DiscreteValues *parentsValues) const
 Calculate assignment for frontal variables that maximizes value.
Public Member Functions inherited from gtsam::DiscreteConditional
 DiscreteConditional ()
 Default constructor needed for serialization.
 DiscreteConditional (size_t nFrontals, const DecisionTreeFactor &f)
 Construct from factor, taking the first nFrontals keys as frontals.
 DiscreteConditional (size_t nFrontals, const DiscreteKeys &keys, const ADT &potentials)
 Construct from DiscreteKeys and AlgebraicDecisionTree, taking the first nFrontals keys as frontals, in the order given.
 DiscreteConditional (const Signature &signature)
 Construct from signature.
 DiscreteConditional (const DiscreteKey &key, const DiscreteKeys &parents, const Signature::Table &table)
 Construct from key, parents, and a Signature::Table specifying the conditional probability table (CPT) in 00 01 10 11 order.
 DiscreteConditional (const DiscreteKey &key, const DiscreteKeys &parents, const std::string &spec)
 Construct from key, parents, and a string specifying the conditional probability table (CPT) in 00 01 10 11 order.
 DiscreteConditional (const DiscreteKey &key, const std::string &spec)
 No-parent specialization; can also use DiscreteDistribution.
 DiscreteConditional (const DecisionTreeFactor &joint, const DecisionTreeFactor &marginal)
 construct P(X|Y) = f(X,Y)/f(Y) from f(X,Y) and f(Y) Assumes but does not check that f(Y)=sum_X f(X,Y).
 DiscreteConditional (const DecisionTreeFactor &joint, const DecisionTreeFactor &marginal, const Ordering &orderedKeys)
 construct P(X|Y) = f(X,Y)/f(Y) from f(X,Y) and f(Y) Assumes but does not check that f(Y)=sum_X f(X,Y).
DiscreteConditional operator* (const DiscreteConditional &other) const
 Combine two conditionals, yielding a new conditional with the union of the frontal keys, ordered by gtsam::Key.
DiscreteConditional marginal (Key key) const
 Calculate marginal on given key, no parent case.
bool equals (const DiscreteFactor &other, double tol=1e-9) const override
 GTSAM-style equals.
double logProbability (const DiscreteValues &x) const
 Log-probability is just -error(x).
void printSignature (const std::string &s="Discrete Conditional: ", const KeyFormatter &formatter=DefaultKeyFormatter) const
 print index signature only
double evaluate (const DiscreteValues &values) const
 Evaluate, just look up in AlgebraicDecisonTree.
shared_ptr choose (const DiscreteValues &given) const
 < DiscreteValues version
DecisionTreeFactor::shared_ptr likelihood (const DiscreteValues &frontalValues) const
 Convert to a likelihood factor by providing value before bar.
DecisionTreeFactor::shared_ptr likelihood (size_t frontal) const
 Single variable version of likelihood.
size_t sample (const DiscreteValues &parentsValues) const
 sample
size_t sample (size_t parent_value) const
 Single parent version.
size_t sample () const
 Zero parent version.
size_t argmax () const
 Return assignment that maximizes distribution.
double error (const DiscreteValues &values) const
 Calculate error for DiscreteValues x, is -log(probability).
double error (const HybridValues &values) const override
 Calculate error for HybridValues x, is -log(probability) Simply dispatches to DiscreteValues version.
double operator() (const DiscreteValues &values) const override
 < DiscreteValues version
void sampleInPlace (DiscreteValues *parentsValues) const
 sample in place, stores result in partial solution
std::vector< DiscreteValues > frontalAssignments () const
 Return all assignments for frontal variables.
std::vector< DiscreteValues > allAssignments () const
 Return all assignments for frontal and parent variables.
std::string markdown (const KeyFormatter &keyFormatter=DefaultKeyFormatter, const Names &names={}) const override
 Render as markdown table.
std::string html (const KeyFormatter &keyFormatter=DefaultKeyFormatter, const Names &names={}) const override
 Render as html table.
double evaluate (const HybridValues &x) const override
 Calculate probability for HybridValues x.
double logProbability (const HybridValues &x) const override
 < HybridValues version
double logNormalizationConstant () const override
 logNormalizationConstant K is just zero, such that logProbability(x) = log(evaluate(x)) = - error(x) and hence error(x) = - log(evaluate(x)) > 0 for all x.
double operator() (const HybridValues &x) const
 Evaluate probability density, sugar.
Public Member Functions inherited from gtsam::DecisionTreeFactor
 DecisionTreeFactor ()
 Default constructor for I/O.
 DecisionTreeFactor (const DiscreteKeys &keys, const ADT &potentials)
 Constructor from DiscreteKeys and AlgebraicDecisionTree.
 DecisionTreeFactor (const DiscreteKeys &keys, const std::vector< double > &table)
 Constructor from doubles.
 DecisionTreeFactor (const DiscreteKeys &keys, const std::string &table)
 Constructor from string.
template<class SOURCE>
 DecisionTreeFactor (const DiscreteKey &key, SOURCE table)
 Single-key specialization.
 DecisionTreeFactor (const DiscreteKey &key, const std::vector< double > &row)
 Single-key specialization, with vector of doubles.
 DecisionTreeFactor (const DiscreteConditional &c)
 Construct from a DiscreteConditional type.
DecisionTreeFactor apply (const DecisionTreeFactor &f, ADT::Binary op) const
 Apply binary operator (*this) "op" f.
shared_ptr combine (size_t nrFrontals, ADT::Binary op) const
 Combine frontal variables using binary operator "op".
shared_ptr combine (const Ordering &keys, ADT::Binary op) const
 Combine frontal variables in an Ordering using binary operator "op".
std::vector< std::pair< DiscreteValues, double > > enumerate () const
 Enumerate all values into a map from values to double.
DiscreteKeys discreteKeys () const
 Return all the discrete keys associated with this factor.
DecisionTreeFactor prune (size_t maxNrAssignments) const
 Prune the decision tree of discrete variables.
void dot (std::ostream &os, const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
 output to graphviz format, stream version
void dot (const std::string &name, const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
 output to graphviz format, open a file
std::string dot (const KeyFormatter &keyFormatter=DefaultKeyFormatter, bool showZero=true) const
 output to graphviz format string
double evaluate (const DiscreteValues &values) const
 Calculate probability for given values x, is just look up in AlgebraicDecisionTree.
double error (const DiscreteValues &values) const
 Calculate error for DiscreteValues x, is -log(probability).
DecisionTreeFactor operator* (const DecisionTreeFactor &f) const override
 multiply two factors
size_t cardinality (Key j) const
DecisionTreeFactor operator/ (const DecisionTreeFactor &f) const
 divide by factor f (safely)
DecisionTreeFactor toDecisionTreeFactor () const override
 Convert into a decisiontree.
shared_ptr sum (size_t nrFrontals) const
 Create new factor by summing all values with the same separator values.
shared_ptr sum (const Ordering &keys) const
 Create new factor by summing all values with the same separator values.
shared_ptr max (size_t nrFrontals) const
 Create new factor by maximizing over all values with the same separator.
shared_ptr max (const Ordering &keys) const
 Create new factor by maximizing over all values with the same separator.
Public Member Functions inherited from gtsam::DiscreteFactor
 DiscreteFactor ()
 Default constructor creates empty factor.
template<typename CONTAINER>
 DiscreteFactor (const CONTAINER &keys)
 Construct from container of keys.
virtual ~DiscreteFactor ()
 Virtual destructor.
double error (const DiscreteValues &values) const
 Error is just -log(value).
double error (const HybridValues &c) const override
 All factor types need to implement an error function.
Public Member Functions inherited from gtsam::Factor
virtual ~Factor ()=default
 Default destructor.
bool empty () const
 Whether the factor is empty (involves zero variables).
Key front () const
 First key.
Key back () const
 Last key.
const_iterator find (Key key) const
 find
const KeyVector & keys () const
 Access the factor's involved variable keys.
const_iterator begin () const
 Iterator at beginning of involved variable keys.
const_iterator end () const
 Iterator at end of involved variable keys.
size_t size () const
virtual void printKeys (const std::string &s="Factor", const KeyFormatter &formatter=DefaultKeyFormatter) const
 print only keys
bool equals (const This &other, double tol=1e-9) const
 check equality
KeyVector & keys ()
iterator begin ()
 Iterator at beginning of involved variable keys.
iterator end ()
 Iterator at end of involved variable keys.
Public Member Functions inherited from gtsam::AlgebraicDecisionTree< Key >
 AlgebraicDecisionTree (double leaf=1.0)
 AlgebraicDecisionTree (const Base &add)
 AlgebraicDecisionTree (const Key &label, double y1, double y2)
 Create a new leaf function splitting on a variable.
 AlgebraicDecisionTree (const typename Base::LabelC &labelC, double y1, double y2)
 Create a new leaf function splitting on a variable.
 AlgebraicDecisionTree (const std::vector< typename Base::LabelC > &labelCs, const std::vector< double > &ys)
 Create from keys with cardinalities and a vector table.
 AlgebraicDecisionTree (const std::vector< typename Base::LabelC > &labelCs, const std::string &table)
 Create from keys and string table.
 AlgebraicDecisionTree (Iterator begin, Iterator end, const Key &label)
 Create a range of decision trees, splitting on a single variable.
 AlgebraicDecisionTree (const AlgebraicDecisionTree< M > &other, const std::map< M, Key > &map)
 Convert labels from type M to type L.
AlgebraicDecisionTree operator+ (const AlgebraicDecisionTree &g) const
 sum
AlgebraicDecisionTree operator* (const AlgebraicDecisionTree &g) const
 product
AlgebraicDecisionTree operator/ (const AlgebraicDecisionTree &g) const
 division
AlgebraicDecisionTree sum (const Key &label, size_t cardinality) const
 sum out variable
AlgebraicDecisionTree sum (const typename Base::LabelC &labelC) const
 sum out variable
void print (const std::string &s="", const typename Base::LabelFormatter &labelFormatter=&DefaultFormatter) const
 print method customized to value type double.
bool equals (const AlgebraicDecisionTree &other, double tol=1e-9) const
 Equality method customized to value type double.
Public Member Functions inherited from gtsam::DecisionTree< L, Y >
 DecisionTree ()
 Default constructor (for serialization).
 DecisionTree (const Y &y)
 Create a constant.
 DecisionTree (const L &label, const Y &y1, const Y &y2)
 Create tree with 2 assignments y1, y2, splitting on variable label.
 DecisionTree (const LabelC &label, const Y &y1, const Y &y2)
 Allow Label+Cardinality for convenience.
 DecisionTree (const std::vector< LabelC > &labelCs, const std::vector< Y > &ys)
 Create from keys and a corresponding vector of values.
 DecisionTree (const std::vector< LabelC > &labelCs, const std::string &table)
 Create from keys and string table.
template<typename Iterator>
 DecisionTree (Iterator begin, Iterator end, const L &label)
 Create DecisionTree from others.
 DecisionTree (const L &label, const DecisionTree &f0, const DecisionTree &f1)
 Create DecisionTree from two others.
template<typename X, typename Func>
 DecisionTree (const DecisionTree< L, X > &other, Func Y_of_X)
 Convert from a different value type.
template<typename M, typename X, typename Func>
 DecisionTree (const DecisionTree< M, X > &other, const std::map< M, L > &map, Func Y_of_X)
 Convert from a different value type X to value type Y, also transate labels via map from type M to L.
void print (const std::string &s, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter) const
 GTSAM-style print.
bool equals (const DecisionTree &other, const CompareFunc &compare=&DefaultCompare) const
virtual ~DecisionTree ()=default
 Make virtual.
bool empty () const
 Check if tree is empty.
bool operator== (const DecisionTree &q) const
 equality
const Y & operator() (const Assignment< L > &x) const
 evaluate
template<typename Func>
void visit (Func f) const
 Visit all leaves in depth-first fashion.
template<typename Func>
void visitLeaf (Func f) const
 Visit all leaves in depth-first fashion.
template<typename Func>
void visitWith (Func f) const
 Visit all leaves in depth-first fashion.
size_t nrLeaves () const
 Return the number of leaves in the tree.
template<typename Func, typename X>
X fold (Func f, X x0) const
 Fold a binary function over the tree, returning accumulator.
std::set< L > labels () const
 Retrieve all unique labels as a set.
DecisionTree apply (const Unary &op) const
 apply Unary operation "op" to f
DecisionTree apply (const UnaryAssignment &op) const
 Apply Unary operation "op" to f while also providing the corresponding assignment.
DecisionTree apply (const DecisionTree &g, const Binary &op) const
 apply binary operation "op" to f and g
DecisionTree choose (const L &label, size_t index) const
 create a new function where value(label)==index It's like "restrict" in Darwiche09book pg329, 330?
DecisionTree combine (const L &label, size_t cardinality, const Binary &op) const
 combine subtrees on key with binary operation "op"
DecisionTree combine (const LabelC &labelC, const Binary &op) const
 combine with LabelC for convenience
void dot (std::ostream &os, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
 output to graphviz format, stream version
void dot (const std::string &name, const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
 output to graphviz format, open a file
std::string dot (const LabelFormatter &labelFormatter, const ValueFormatter &valueFormatter, bool showZero=true) const
 output to graphviz format string
 DecisionTree (const NodePtr &root)
template<typename Iterator>
NodePtr compose (Iterator begin, Iterator end, const L &label) const
Public Member Functions inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
void print (const std::string &s="Conditional", const KeyFormatter &formatter=DefaultKeyFormatter) const
 print with optional formatter
bool equals (const This &c, double tol=1e-9) const
 check equality
size_t nrFrontals () const
 return the number of frontals
size_t nrParents () const
 return the number of parents
Key firstFrontalKey () const
 Convenience function to get the first frontal key.
Frontals frontals () const
 return a view of the frontal keys
Parents parents () const
 return a view of the parent keys
double operator() (const HybridValues &x) const
 Evaluate probability density, sugar.
double normalizationConstant () const
 Non-virtual, exponentiate logNormalizationConstant.
DecisionTreeFactor::const_iterator beginFrontals () const
 Iterator pointing to first frontal key.
DecisionTreeFactor::const_iterator endFrontals () const
 Iterator pointing past the last frontal key.
DecisionTreeFactor::const_iterator beginParents () const
 Iterator pointing to the first parent key.
DecisionTreeFactor::const_iterator endParents () const
 Iterator pointing past the last parent key.

Public Types

using This = DiscreteLookupTable
using shared_ptr = boost::shared_ptr<This>
using BaseConditional = Conditional<DecisionTreeFactor, This>
Public Types inherited from gtsam::DiscreteConditional
typedef DiscreteConditional This
 Typedef to this class.
typedef boost::shared_ptr< This > shared_ptr
 shared_ptr to this class
typedef DecisionTreeFactor BaseFactor
 Typedef to our factor base class.
typedef Conditional< BaseFactor, This > BaseConditional
 Typedef to our conditional base class.
using Values = DiscreteValues
 backwards compatibility
Public Types inherited from gtsam::DecisionTreeFactor
typedef DecisionTreeFactor This
typedef DiscreteFactor Base
 Typedef to base class.
typedef boost::shared_ptr< DecisionTreeFactor > shared_ptr
typedef AlgebraicDecisionTree< Key > ADT
Public Types inherited from gtsam::DiscreteFactor
typedef DiscreteFactor This
 This class.
typedef boost::shared_ptr< DiscreteFactor > shared_ptr
 shared_ptr to this class
typedef Factor Base
 Our base class.
using Values = DiscreteValues
 backwards compatibility
using Names = DiscreteValues::Names
 Translation table from values to strings.
Public Types inherited from gtsam::Factor
typedef KeyVector::iterator iterator
 Iterator over keys.
typedef KeyVector::const_iterator const_iterator
 Const iterator over keys.
Public Types inherited from gtsam::AlgebraicDecisionTree< Key >
using Base
Public Types inherited from gtsam::DecisionTree< L, Y >
using LabelFormatter = std::function<std::string(L)>
using ValueFormatter = std::function<std::string(Y)>
using CompareFunc = std::function<bool(const Y&, const Y&)>
using Unary = std::function<Y(const Y&)>
 Handy typedefs for unary and binary function types.
using UnaryAssignment = std::function<Y(const Assignment<L>&, const Y&)>
using Binary = std::function<Y(const Y&, const Y&)>
using LabelC = std::pair<L, size_t>
 A label annotated with cardinality.
using NodePtr = typename Node::Ptr
 ---------------------— Node base class ------------------------—
Public Types inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
typedef boost::iterator_range< typename DecisionTreeFactor::const_iterator > Frontals
 View of the frontal keys (call frontals()).
typedef boost::iterator_range< typename DecisionTreeFactor::const_iterator > Parents
 View of the separator keys (call parents()).

Additional Inherited Members

static double safe_div (const double &a, const double &b)
static bool CheckInvariants (const DiscreteConditional &conditional, const VALUES &x)
 Check invariants of this conditional, given the values x.
Public Attributes inherited from gtsam::DecisionTree< L, Y >
NodePtr root_
 A DecisionTree just contains the root. TODO(dellaert): make protected.
Protected Member Functions inherited from gtsam::DiscreteConditional
DiscreteConditional::ADT choose (const DiscreteValues &given, bool forceComplete) const
 Internal version of choose.
 Factor ()
 Default constructor for I/O.
template<typename CONTAINER>
 Factor (const CONTAINER &keys)
 Construct factor from container of keys.
template<typename ITERATOR>
 Factor (ITERATOR first, ITERATOR last)
 Construct factor from iterator keys.
Protected Member Functions inherited from gtsam::DecisionTree< L, Y >
template<typename It, typename ValueIt>
NodePtr create (It begin, It end, ValueIt beginY, ValueIt endY) const
 Internal recursive function to create from keys, cardinalities, and Y values.
template<typename M, typename X>
NodePtr convertFrom (const typename DecisionTree< M, X >::NodePtr &f, std::function< L(const M &)> L_of_M, std::function< Y(const X &)> Y_of_X) const
 Convert from a DecisionTree<M, X> to DecisionTree<L, Y>.
Protected Member Functions inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
 Conditional ()
 Empty Constructor to make serialization possible.
template<typename CONTAINER>
static Factor FromKeys (const CONTAINER &keys)
 Construct factor from container of keys.
template<typename ITERATOR>
static Factor FromIterators (ITERATOR first, ITERATOR last)
 Construct factor from iterator keys.
Static Protected Member Functions inherited from gtsam::DecisionTree< L, Y >
static bool DefaultCompare (const Y &a, const Y &b)
 Default method for comparison of two objects of type Y.
Protected Attributes inherited from gtsam::DecisionTreeFactor
std::map< Key, size_t > cardinalities_
Protected Attributes inherited from gtsam::Factor
KeyVector keys_
 The keys involved in this factor.
Protected Attributes inherited from gtsam::Conditional< DecisionTreeFactor, DiscreteConditional >
size_t nrFrontals_
 The first nrFrontal variables are frontal and the rest are parents.

Constructor & Destructor Documentation

◆ DiscreteLookupTable()

gtsam::DiscreteLookupTable::DiscreteLookupTable ( size_t nFrontals,
const DiscreteKeys & keys,
const ADT & potentials )
inline

Construct a new Discrete Lookup Table object.

Parameters
nFrontalsnumber of frontal variables
keysa sorted list of gtsam::Keys
potentialsthe algebraic decision tree with lookup values

Member Function Documentation

◆ argmax()

size_t gtsam::DiscreteLookupTable::argmax ( const DiscreteValues & parentsValues) const

return assignment for single frontal variable that maximizes value.

Parameters
parentsValuesKnown assignments for the parents.
Returns
maximizing assignment for the frontal variable.

◆ argmaxInPlace()

void gtsam::DiscreteLookupTable::argmaxInPlace ( DiscreteValues * parentsValues) const

Calculate assignment for frontal variables that maximizes value.

Parameters
(in/out)parentsValues Known assignments for the parents.

◆ print()

void gtsam::DiscreteLookupTable::print ( const std::string & s = "Discrete Lookup Table: ",
const KeyFormatter & formatter = DefaultKeyFormatter ) const
overridevirtual

GTSAM-style print.

Reimplemented from gtsam::DiscreteConditional.

The documentation for this class was generated from the following files:
