In Part 3 of the Manifold Filter Hierarchy, we introduced the EquivariantFilter template in GTSAM and walked through the geometry that makes EqF useful: a state on a manifold $\mathcal{M}$, a symmetry group $\mathcal{G}$ acting on it, and an error expressed around a fixed reference state instead of the current estimate. In that post, we discussed a very simple toy problem of an attitude-on-a-sphere.

In today’s post, we consider more complex problems which can be tackled using an EqF, such as VIO (Visual-Inertial-Odometry) and ABC (Attitude-Bias-Calibration). In tandem, we also announce AwesomeEqF: a community-curated collection of papers and runnable notebooks for equivariant filtering, built around GTSAM.

What is AwesomeEqF?

AwesomeEqF is a website (and repo) containing:

A reading list of papers, organized from foundational invariant-observer papers through to recent EqF architectures
A growing set of notebooks that utilize GTSAM’s EqF filter implementation and perform on real data
A soon-to-be blog for tutorials and write-ups that contextualize specific papers.

The intent is for AwesomeEqF to be the place a roboticist lands when they have read about the potential of equivariant filtering and are excited to get their hands dirty. Contributions are welcome, see the Contributing Guide.

A Quick Recap of the EqF

From Part 3: an EqF stores the estimate as a fixed reference state $\xi^\circ \in \mathcal{M}$ together with a group element $\hat{g} \in \mathcal{G}$. The current estimate is recovered by the group action $\hat{\xi}$, and the natural error $e$ lands at $\xi^\circ$ when the filter is correct.

\[\hat{\xi} = \phi(\hat{g}, \xi^\circ),\] \[e = \phi(\hat{g}^{-1}, \xi)\]

Because the linearization happens around that fixed reference rather than the moving estimate, covariance propagation depends much less on whether the current guess is right.

Every new EqF needs two problem-specific ingredients before it can run like an ordinary EKF. We need to supply the lift that turns physical dynamics into a small motion in the group, and the equivariance conditions that the dynamics and outputs have to satisfy. Once those are in, the actual runtime loop looks like an ordinary EKF on the group tangent space.

The rest of this post applies that EqF pattern to two practical cases: visual-inertial odometry (VIO) and attitude estimation.

The EqVIO: Equivariant Visual-Inertial Odometry

The EqVIO filter by Pieter van Goor and Robert Mahony is the answer to a long-standing complaint about EKF-based VIO: standard filters such as MSCKF (Multi-State Constraint Kalman Filter) accumulate inconsistency because the linearization point drifts with the (possibly wrong) estimate, and the filter ends up more confident than its actual error warrants. The EqVIO removes that source of inconsistency by construction, using equivariance.

The VIO state

The EqVIO represents VIO with a manifold state containing pose, velocity, IMU biases, camera extrinsics, and tracked landmarks. At every timestep, its physical state is composed of:

body pose $P \in SE(3)$,
body linear velocity $v \in \mathbb{R}^3$,
gyroscope bias $b_\omega \in \mathbb{R}^3$,
accelerometer bias $b_a \in \mathbb{R}^3$,
camera-to-IMU rigid offset $T_{ci} \in SE(3)$,
a set of 3D landmarks $p_i \in \mathbb{R}^3$ corresponding to tracked image features.

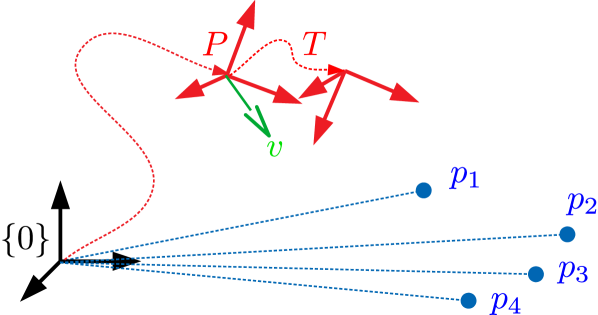

EqVIO state diagram. — Figure from van Goor et. al, visualizing the state of the system relative to the origin.

Note that the state is not a Lie group, but rather a manifold, which is exactly the situation an EqF is good for.

The symmetry group

The key construction in the EqVIO is a symmetry group $\mathcal{G}$ that acts on the full composite VIO state. The group is built as a product Lie group whose factors mirror the state itself:

\[\mathcal{G} = SE_2(3) \ltimes \mathbb{R}^6 \times SE(3) \times \prod_i \mathrm{SOT}(3).\]

Each group factor corresponds to a specific part of the VIO state:

$SE_2(3)$, the “extended pose” group, jointly handles attitude, position, and velocity.
$\mathbb{R}^6$ for the two IMU biases, which the semi-direct product couples back into the inertial frame.
$SE(3)$ for the camera offset $T_{ci}$, so online extrinsic refinement is part of the geometry.
$\mathrm{SOT}(3)$ (rotation plus scaling) per landmark, capturing the rotation-and-depth ambiguity that visual measurements really do have.

The action $\phi$ of $\mathcal{G}$ on the state is then the natural one inherited from each factor.

$\mathrm{SOT}(3)$ is the rotation-and-positive-scale group that the EqVIO uses to encode each landmark’s monocular bearing-depth ambiguity. Some readers may be unfamiliar with this group, as it is not a commonly defined group in GTSAM, but rather specific to the EqVIO implementation. Concretely,

\[\mathrm{SOT}(3) = SO(3) \times \mathbb{R}_{>0}\]

is the direct product of a rotation $R \in SO(3)$ and a strictly positive scalar $s \in \mathbb{R}_{>0}$, acting on a 3D point as $q \mapsto s\, R\, q$. This group matters because monocular projection only fixes a landmark up to its bearing direction and a positive depth scaling, which is exactly the ambiguity that $\mathrm{SOT}(3)$ encodes, so making it part of the symmetry is what lets the equivariant output approximation in the next section work.

The equivariant output approximation

The equivariant output approximation is the EqVIO idea that improves how camera measurements are linearized.

Camera measurements are “equivariant” when transforming the state produces a predictable transformation of the measurement. As is classic for VIO systems, the camera observes a landmark and produces a bearing vector. Van Goor and Mahony prove that, with respect to the $SOT(3)$ component of their group, this measurement function is equivariant.

The equivariant output approximation can reduce camera measurement approximation error by an order of magnitude. Traditionally, EKFs use a first-order approximation of the measurement function; by exploiting the equivariance property, we can use the group structure to process input camera data with a more faithful local approximation.

The same symmetry argument also motivates inverse-depth-style landmark parameterizations. It is well known that representing landmarks by inverse distance can improve stability of a filter. The authors present a polar parameterization derived from $\mathrm{SOT}(3)$ that can act similar to inverse-depth but also further minimize linearization error. Currently, this polar parameterization is not implemented into GTSAM’s EqVIO implementation, but it is a near-future change on the roadmap.

What the runtime loop looks like

The EqVIO runtime loop has the familiar predict-update shape, with extra feature management for a changing landmark set:

Predict. IMU frames drive a small motion in the group via the lift.
Update. For each tracked feature in a new image frame, predict the normalized image coordinate, compare to the observation, form the equivariant innovation, and apply a correction in the tangent space.
Manage features. Add new landmarks for unseen features, drop features that fall out of the image, and keep the covariance block consistent with the live landmark set.

Feature management is essential bookkeeping for running the EqVIO filter on real sequences without the state vector blowing up. This bookkeeping step is new compared with the smaller examples in the previous posts.

The EqVIO in GTSAM

GTSAM exposes the EqVIO through three implementation files in gtsam_unstable/navigation:

EqVIOState.h: the manifold state described above, including the dynamic landmark list.
EqVIOSymmetry.h: the semi-direct-product group $\mathcal{G}$, its action on EqVIOState, and the lift used during prediction.
EqVIOFilter.h: the filter class and the predict / update entry points.

EqVIOFilter is built on the EquivariantFilter template that Part 3 introduced. xi_ref_ is the EqVIO reference state, and g_ is the lifted group estimate that the IMU drives.

Python users can access the same EqVIO filter through gtsam_unstable.eqvio bindings that closely mirror the C++ API. The snippet below walks through the initialization and propagation of the filter, which is described in more detail in the AwesomeEqF notebook!

import gtsam, gtsam_unstable

xi_ref = gtsam_unstable.eqvio.State()
xi_ref.cameraOffset = T_ci
params = gtsam_unstable.eqvio.EqVIOFilterParams()
filter = gtsam_unstable.eqvio.EqVIOFilter(
    xi_ref, initial_covariance, gtsam.KeyVector(), params
)

filter.initializeFromIMU(first_imu)
for imu_input, dt in imu_stream:
    filter.predict(imu_input, dt)
for features, R in vision_stream:  # features: dict[int, np.ndarray(2,)]
    filter.update(features, camera, R)

The full Python walkthrough lives here, as a notebook on AwesomeEqF. Take a look!

This paper-to-code-to-notebook path is the main reason AwesomeEqF exists. Equivariant filtering papers often introduce useful geometry, but it can be hard to see how that geometry turns into a working estimator on data. AwesomeEqF is meant to close that gap by pairing the paper trail with GTSAM implementations and runnable examples, so a reader can move from the idea to a filter they can inspect, modify, and run.

The ABC-EqF: Attitude, Bias, Calibration

We also added a second example on the website. The “ABC-EqF” applies the same equivariant-filter design idea to attitude estimation with bias and calibration. The filter comes from Fornasier, Ng, Brommer, Böhm, Mahony, and Weiss, whose paper covers equivariant filter design for attitude state estimation.

The ABC-EqF state stacks three attitude-estimation quantities:

attitude $R \in SO(3)$,
gyroscope bias $b \in \mathbb{R}^3$,
and a sensor calibration rotation $S \in SO(3)$ that aligns a reference direction sensor (e.g. magnetometer) with the body frame.

The classical EKF treats bias and calibration as ordinary linear states tacked onto attitude, but the ABC-EqF instead builds a single symmetry group $SO(3) \times \mathbb{R}^3 \times SO(3)$ that natively contains the bias and calibration as part of the geometric structure, so the bias-aware error and the calibration-aware error transport correctly under the group action. The result is better linearization behavior, faster bias convergence, and an estimator whose consistency does not depend on the bias estimate being good.

GTSAM implements the ABC-EqF as ABCEquivariantFilter in gtsam_unstable. A complete C++ example lives at AbcEquivariantFilterExample.cpp, and the AwesomeEqF notebook here walks through that code in Python with interactive plots for the attitude, bias, and calibration errors over time.

Takeaway

The EqVIO and the ABC-EqF show that the EqF machinery from Part 3 now reaches practical robotics estimators in GTSAM. The EqVIO filter is the most recent application, and it is now usable from Python through GTSAM.

AwesomeEqF is meant to grow with the field. If you have a paper, a notebook, or a write-up that fits, please open a pull request.
