Detailed Description

IMU pre-integration on NavSatet manifold.

This corresponds to the original RSS paper (with one difference: V is rotated)

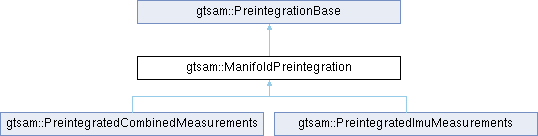

Inheritance diagram for gtsam::ManifoldPreintegration:

Public Member Functions
Constructors
	ManifoldPreintegration (const boost::shared_ptr< Params > &p, const imuBias::ConstantBias &biasHat=imuBias::ConstantBias())
	Constructor, initializes the variables in the base class.
Basic utilities
Re-initialize PreintegratedMeasurements
void	resetIntegration () override
Instance variables access
NavState	deltaXij () const override
Rot3	deltaRij () const override
Vector3	deltaPij () const override
Vector3	deltaVij () const override
Matrix3	delRdelBiasOmega () const
Matrix3	delPdelBiasAcc () const
Matrix3	delPdelBiasOmega () const
Matrix3	delVdelBiasAcc () const
Matrix3	delVdelBiasOmega () const
Testable
bool	equals (const ManifoldPreintegration &other, double tol) const
Main functionality
void	update (const Vector3 &measuredAcc, const Vector3 &measuredOmega, const double dt, Matrix9 A, Matrix93 B, Matrix93 *C) override
	Update preintegrated measurements and get derivatives It takes measured quantities in the j frame Modifies preintegrated quantities in place after correcting for bias and possibly sensor pose NOTE(frank): implementation is different in two versions.
Vector9	biasCorrectedDelta (const imuBias::ConstantBias &bias_i, OptionalJacobian< 9, 6 > H=boost::none) const override
	Given the estimate of the bias, return a NavState tangent vector summarizing the preintegrated IMU measurements so far NOTE(frank): implementation is different in two versions.
virtual boost::shared_ptr< ManifoldPreintegration >	clone () const
	Dummy clone for MATLAB.
Public Member Functions inherited from gtsam::PreintegrationBase
	PreintegrationBase (const boost::shared_ptr< Params > &p, const imuBias::ConstantBias &biasHat=imuBias::ConstantBias())
	Constructor, initializes the variables in the base class.
void	resetIntegrationAndSetBias (const Bias &biasHat)
bool	matchesParamsWith (const PreintegrationBase &other) const
	check parameters equality: checks whether shared pointer points to same Params object.
const boost::shared_ptr< Params > &	params () const
	shared pointer to params
Params &	p () const
	const reference to params
const imuBias::ConstantBias &	biasHat () const
double	deltaTij () const
Vector6	biasHatVector () const
std::pair< Vector3, Vector3 >	correctMeasurementsBySensorPose (const Vector3 &unbiasedAcc, const Vector3 &unbiasedOmega, OptionalJacobian< 3, 3 > correctedAcc_H_unbiasedAcc=boost::none, OptionalJacobian< 3, 3 > correctedAcc_H_unbiasedOmega=boost::none, OptionalJacobian< 3, 3 > correctedOmega_H_unbiasedOmega=boost::none) const
	Subtract estimate and correct for sensor pose Compute the derivatives due to non-identity body_P_sensor (rotation and centrifugal acc) Ignore D_correctedOmega_measuredAcc as it is trivially zero.
virtual void	integrateMeasurement (const Vector3 &measuredAcc, const Vector3 &measuredOmega, const double dt)
	Version without derivatives.
NavState	predict (const NavState &state_i, const imuBias::ConstantBias &bias_i, OptionalJacobian< 9, 9 > H1=boost::none, OptionalJacobian< 9, 6 > H2=boost::none) const
	Predict state at time j.
Vector9	computeError (const NavState &state_i, const NavState &state_j, const imuBias::ConstantBias &bias_i, OptionalJacobian< 9, 9 > H1, OptionalJacobian< 9, 9 > H2, OptionalJacobian< 9, 6 > H3) const
	Calculate error given navStates.
Vector9	computeErrorAndJacobians (const Pose3 &pose_i, const Vector3 &vel_i, const Pose3 &pose_j, const Vector3 &vel_j, const imuBias::ConstantBias &bias_i, OptionalJacobian< 9, 6 > H1=boost::none, OptionalJacobian< 9, 3 > H2=boost::none, OptionalJacobian< 9, 6 > H3=boost::none, OptionalJacobian< 9, 3 > H4=boost::none, OptionalJacobian< 9, 6 > H5=boost::none) const
	Compute errors w.r.t.
virtual void	print (const std::string &s="") const

Protected Member Functions
	ManifoldPreintegration ()
	Default constructor for serialization.
Protected Member Functions inherited from gtsam::PreintegrationBase
	PreintegrationBase ()
	Default constructor for serialization.
virtual	~PreintegrationBase ()
	Virtual destructor for serialization.

Protected Attributes
NavState	deltaXij_
	Pre-integrated navigation state, from frame i to frame j Note: relative position does not take into account velocity at time i, see deltap+, in [2] Note: velocity is now also in frame i, as opposed to deltaVij in [2].
Matrix3	delRdelBiasOmega_
	Jacobian of preintegrated rotation w.r.t. angular rate bias.
Matrix3	delPdelBiasAcc_
	Jacobian of preintegrated position w.r.t. acceleration bias.
Matrix3	delPdelBiasOmega_
	Jacobian of preintegrated position w.r.t. angular rate bias.
Matrix3	delVdelBiasAcc_
	Jacobian of preintegrated velocity w.r.t. acceleration bias.
Matrix3	delVdelBiasOmega_
	Jacobian of preintegrated velocity w.r.t. angular rate bias.
Protected Attributes inherited from gtsam::PreintegrationBase
boost::shared_ptr< Params >	p_
Bias	biasHat_
	Acceleration and gyro bias used for preintegration.
double	deltaTij_
	Time interval from i to j.

Friends
class	boost::serialization::access
	Serialization function.

Additional Inherited Members
Public Types inherited from gtsam::PreintegrationBase
typedef imuBias::ConstantBias	Bias
typedef PreintegrationParams	Params

Constructor & Destructor Documentation

◆ ManifoldPreintegration()

gtsam::ManifoldPreintegration::ManifoldPreintegration	(	const boost::shared_ptr< Params > &	p,
		const imuBias::ConstantBias &	biasHat = imuBias::ConstantBias() )

Constructor, initializes the variables in the base class.

Parameters

p	Parameters, typically fixed in a single application
bias	Current estimate of acceleration and rotation rate biases

Member Function Documentation

◆ biasCorrectedDelta()

Vector9 gtsam::ManifoldPreintegration::biasCorrectedDelta	(	const imuBias::ConstantBias &	bias_i,
		OptionalJacobian< 9, 6 >	H = boost::none ) const

overridevirtual

Given the estimate of the bias, return a NavState tangent vector summarizing the preintegrated IMU measurements so far NOTE(frank): implementation is different in two versions.

Implements gtsam::PreintegrationBase.

◆ deltaPij()

Vector3 gtsam::ManifoldPreintegration::deltaPij ( ) const

inlineoverridevirtual

Implements gtsam::PreintegrationBase.

◆ deltaRij()

Rot3 gtsam::ManifoldPreintegration::deltaRij ( ) const

inlineoverridevirtual

Implements gtsam::PreintegrationBase.

◆ deltaVij()

Vector3 gtsam::ManifoldPreintegration::deltaVij ( ) const

inlineoverridevirtual

Implements gtsam::PreintegrationBase.

◆ deltaXij()

NavState gtsam::ManifoldPreintegration::deltaXij ( ) const

inlineoverridevirtual

Implements gtsam::PreintegrationBase.

◆ resetIntegration()

void gtsam::ManifoldPreintegration::resetIntegration ( )

overridevirtual

Implements gtsam::PreintegrationBase.

Reimplemented in gtsam::PreintegratedCombinedMeasurements, and gtsam::PreintegratedImuMeasurements.

◆ update()

void gtsam::ManifoldPreintegration::update	(	const Vector3 &	measuredAcc,
		const Vector3 &	measuredOmega,
		const double	dt,
		Matrix9 *	A,
		Matrix93 *	B,
		Matrix93 *	C )

overridevirtual

Update preintegrated measurements and get derivatives It takes measured quantities in the j frame Modifies preintegrated quantities in place after correcting for bias and possibly sensor pose NOTE(frank): implementation is different in two versions.

Implements gtsam::PreintegrationBase.

The documentation for this class was generated from the following files:

/tmp/gtsam-4.2-docs.H5EUbA/src/gtsam/navigation/ManifoldPreintegration.h
/tmp/gtsam-4.2-docs.H5EUbA/src/gtsam/navigation/ManifoldPreintegration.cpp
