gtsam::PinholeSet< CAMERA > Class Template Reference

Detailed Description

template<class CAMERA>
class gtsam::PinholeSet< CAMERA >

PinholeSet: triangulates point and keeps an estimate of it around.

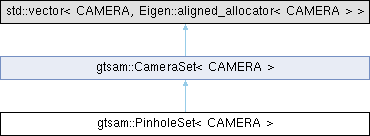

Inheritance diagram for gtsam::PinholeSet< CAMERA >:

Public Member Functions
virtual	~PinholeSet ()
	Virtual destructor.
TriangulationResult	triangulateSafe (const typename CAMERA::MeasurementVector &measured, const TriangulationParameters &params) const
	triangulateSafe
Testable
void	print (const std::string &s="") const override
	print
bool	equals (const PinholeSet &p, double tol=1e-9) const
	equals
Public Member Functions inherited from gtsam::CameraSet< CAMERA >
virtual	~CameraSet ()=default
	Destructor.
bool	equals (const CameraSet &p, double tol=1e-9) const
	equals
template<class POINT>
ZVector	project2 (const POINT &point, boost::optional< FBlocks & > Fs=boost::none, boost::optional< Matrix & > E=boost::none) const
	Project a point (possibly Unit3 at infinity), with derivatives Note that F is a sparse block-diagonal matrix, so instead of a large dense matrix this function returns the diagonal blocks.
template<class POINT>
Vector	reprojectionError (const POINT &point, const ZVector &measured, boost::optional< FBlocks & > Fs=boost::none, boost::optional< Matrix & > E=boost::none) const
	Calculate vector [project2(point)-z] of re-projection errors.

Friends
class	boost::serialization::access
	Serialization function.

Additional Inherited Members
Static Public Member Functions inherited from gtsam::CameraSet< CAMERA >
template<int N, int ND>
static SymmetricBlockMatrix	SchurComplement (const std::vector< Eigen::Matrix< double, ZDim, ND >, Eigen::aligned_allocator< Eigen::Matrix< double, ZDim, ND > > > &Fs, const Matrix &E, const Eigen::Matrix< double, N, N > &P, const Vector &b)
	Do Schur complement, given Jacobian as Fs,E,P, return SymmetricBlockMatrix G = F' * F - F' * E * P * E' * F g = F' * (b - E * P * E' * b) Fixed size version.
template<int N, int ND, int NDD>
static SymmetricBlockMatrix	SchurComplementAndRearrangeBlocks (const std::vector< Eigen::Matrix< double, ZDim, ND >, Eigen::aligned_allocator< Eigen::Matrix< double, ZDim, ND > > > &Fs, const Matrix &E, const Eigen::Matrix< double, N, N > &P, const Vector &b, const KeyVector &jacobianKeys, const KeyVector &hessianKeys)
	Do Schur complement, given Jacobian as Fs,E,P, return SymmetricBlockMatrix G = F' * F - F' * E * P * E' * F g = F' * (b - E * P * E' * b) In this version, we allow for the case where the keys in the Jacobian are organized differently from the keys in the output SymmetricBlockMatrix In particular: each diagonal block of the Jacobian F captures 2 poses (useful for rolling shutter and extrinsic calibration) such that F keeps the block structure that makes the Schur complement trick fast.
template<int N>
static SymmetricBlockMatrix	SchurComplement (const FBlocks &Fs, const Matrix &E, const Eigen::Matrix< double, N, N > &P, const Vector &b)
	Do Schur complement, given Jacobian as Fs,E,P, return SymmetricBlockMatrix G = F' * F - F' * E * P * E' * F g = F' * (b - E * P * E' * b) Fixed size version.
template<int N>
static void	ComputePointCovariance (Eigen::Matrix< double, N, N > &P, const Matrix &E, double lambda, bool diagonalDamping=false)
	Computes Point Covariance P, with lambda parameter.
static Matrix	PointCov (const Matrix &E, const double lambda=0.0, bool diagonalDamping=false)
	Computes Point Covariance P, with lambda parameter, dynamic version.
static SymmetricBlockMatrix	SchurComplement (const FBlocks &Fblocks, const Matrix &E, const Vector &b, const double lambda=0.0, bool diagonalDamping=false)
	Do Schur complement, given Jacobian as Fs,E,P, return SymmetricBlockMatrix Dynamic version.
template<int N>
static void	UpdateSchurComplement (const FBlocks &Fs, const Matrix &E, const Eigen::Matrix< double, N, N > &P, const Vector &b, const KeyVector &allKeys, const KeyVector &keys, SymmetricBlockMatrix &augmentedHessian)
	Applies Schur complement (exploiting block structure) to get a smart factor on cameras, and adds the contribution of the smart factor to a pre-allocated augmented Hessian.
Public Types inherited from gtsam::CameraSet< CAMERA >
using	MatrixZD = Eigen::Matrix<double, ZDim, D>
	Definitions for blocks of F.
using	FBlocks = std::vector<MatrixZD, Eigen::aligned_allocator<MatrixZD>>
Protected Types inherited from gtsam::CameraSet< CAMERA >
using	Base = std::vector<CAMERA, typename Eigen::aligned_allocator<CAMERA>>
typedef CAMERA::Measurement	Z
	2D measurement and noise model for each of the m views The order is kept the same as the keys that we use to create the factor.
typedef CAMERA::MeasurementVector	ZVector
Static Protected Member Functions inherited from gtsam::CameraSet< CAMERA >
static Vector	ErrorVector (const ZVector &predicted, const ZVector &measured)
	Make a vector of re-projection errors.
Static Protected Attributes inherited from gtsam::CameraSet< CAMERA >
static const int	D = traits<CAMERA>::dimension
	Camera dimension.
static const int	ZDim = traits<Z>::dimension
	Measurement dimension.

Member Function Documentation

print()

template<class CAMERA>

void gtsam::PinholeSet< CAMERA >::print ( const std::string & s = "" ) const

inlineoverridevirtual

print

Reimplemented from gtsam::CameraSet< CAMERA >.

---

The documentation for this class was generated from the following file:

• /tmp/gtsam-4.2-docs.H5EUbA/src/gtsam/geometry/PinholeSet.h
